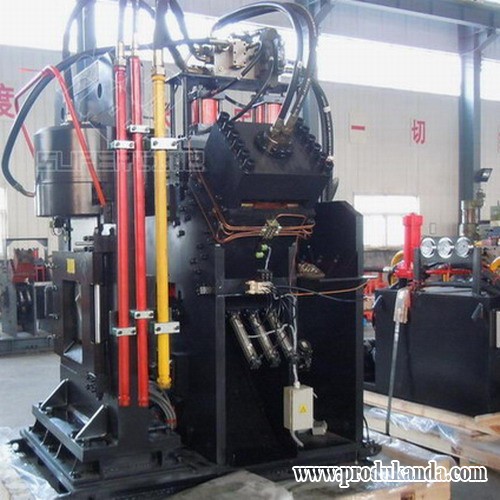

1) Model JX0808,JX1412,JX2020, JX2020S for steel towers material ,angle bars processing

2) Self-programming software ,easily operate

3) PLC+NC control system

4) 12 Month free sale-service

5) 10-15 years using life as per different using environment

Function Punching Marking Shearing

Model   JX2020S  JX1412
Angle size   16Mn (σb=480N/mm2) 63×63×4~200×200×16

40×40×3~140×140×12
Angle size  Q235A  (σb=400N/mm2) 40×40×3~140×140×14
Max. punching Capability(D×T) 16Mn (σb=480N/mm2)Φ26×20 Φ26×12
Max. punching capability(D×T)
Q235A(σb=400N/mm2)   Φ26×20 Φ26×12
Punching nominal force(KN) 1000 550
Marking nominal(KN)    1000 600
Shearing nominal(KN)  1200  1000
Work piece length max.(m)  14   10
Adjustment range of stadia(mm)  30-170  20-110
Punchers number each side  3  2
Marking groups  4
Dimension of characters (mm)  14×10 or 16x10
Shearing mode  Double-blade cutting   Double-blade Cutting
CNC axes number  3
Infeeding speed(m/min) 40
Overall dimension(m)  32×7×2.6     23.8×7×2.2

Net weight(Kg)  20000  17000

More information, feel free to contact us .
