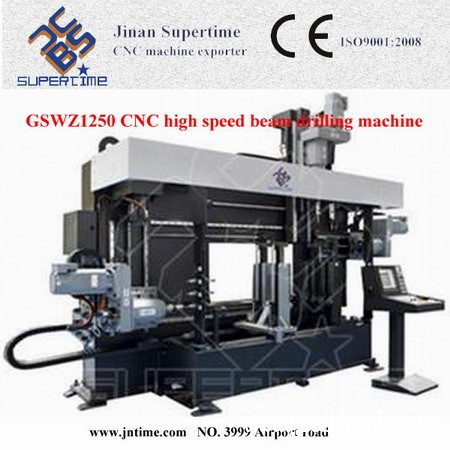

Technical Specification of GSWZ1250/3

1. Size of work piece

1.1 H-Beam: web height H: 150 ~ 1250mm flange width B: 150 ~ 1250mm

1.2 U-Beam: web height H: 150 ~ 1250mm flange width B: 150~800mm

1.3 U-Beam Sparkle edge: 150 ~ 1250mm Narrow edge: 150-800mm

1.4 Max. Thickness: 80mm

2. Drilling case

2.1 No.:   3

2.2 Max. Drilling dia.:     40mm

2.3 Hole of spindle:         BT40

2.4 Motor power of spindle: 3×11KW

2.5 Rotation speed of spindle (steeples adjustable): 30 ~ 3000r/min

3. CNC axes

3.1 No. of axes: 7

3.2 Servo motor power of feeding axes: 3×2KW

   Servo motor power of positioning axes: 3×1.5KW

3.3 Moving speed of three positioning axes: 0 ~ 10m/min

   Moving speed of three feeding axes: 0 ~ 5m/min

3.4 Stroke of width checking: 1100mm

  Stroke of web checking: 1100mm

4. Carriage:

4.1 Servo motor power of carriage: 5 KW

4.2 Max. Feeding speed: 20m/min

4.3 Max. Feeding weight: 10t
